Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI

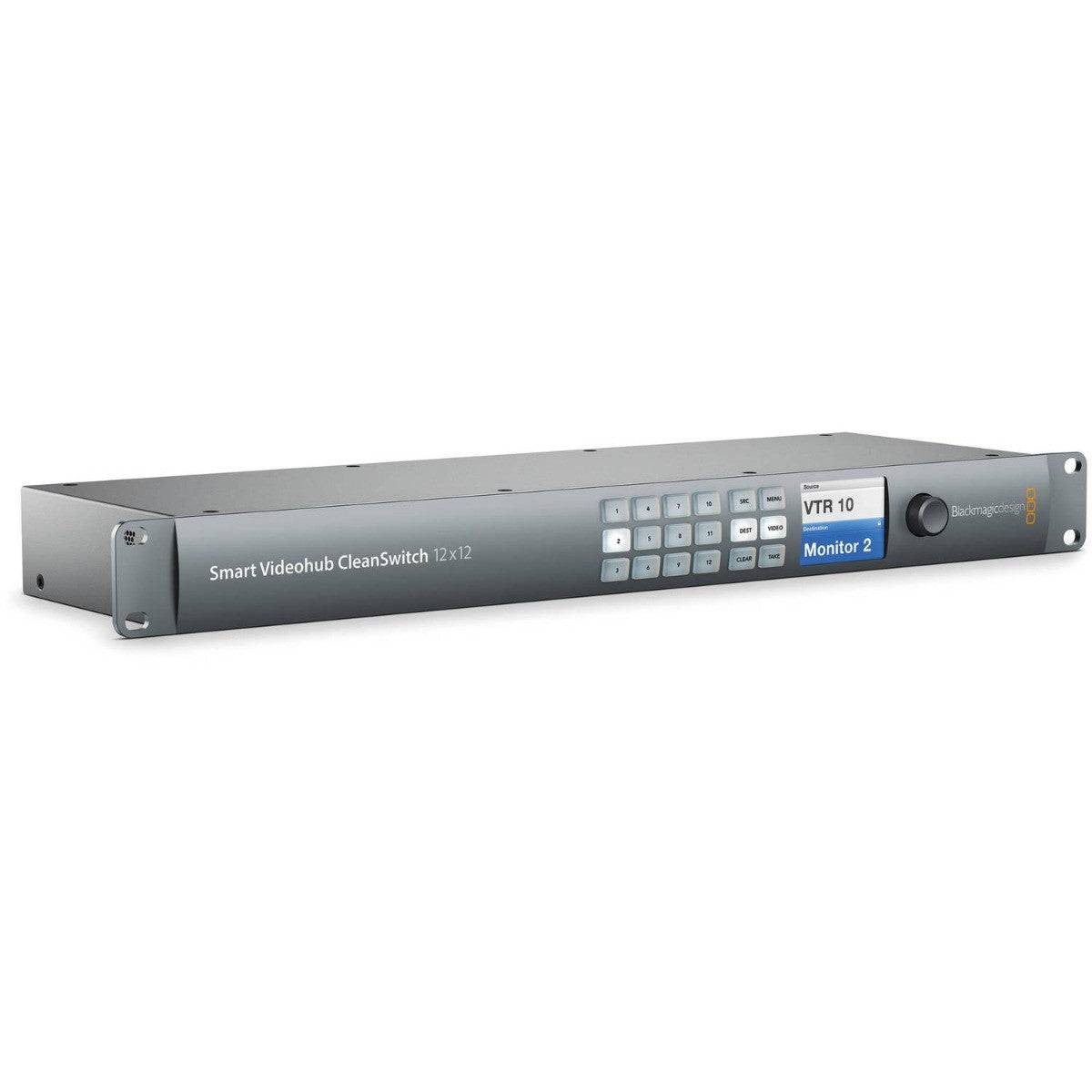

The Blackmagic DesignSmart Videohub CleanSwitch 12 x 12 6G-SDI is a compact 6G-SDI router with built-in re-synchronizers on all inputs that allow clean switching between all video sources of the same video standard and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD, and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring, and remote Ethernet control.

Similar to the other Smart series products, this Smart Videohub Cleanswitch 12 x 12 6G-SDI also comes with Multi-Rate Support for Auto Detection of SD, HD, or 6G-SDI as well as giving simultaneous routing of 4K, HD, SD video, and DVB-ASI. Also, there is the Reference input that gives you compatibility to the Blackburst and TriSync for SD, HD, and UHD 4K. Moreover, you can configure by accessing the front panel LCD or use the RJ45 Ethernet USB 2.0 for setting the IP address only. As a must-to-have feature, this unit has the Power Fail Protection that provides you with the function of router connections to be preserved and restored instantly at Power ON.

Note: IEC power cable is not included.
