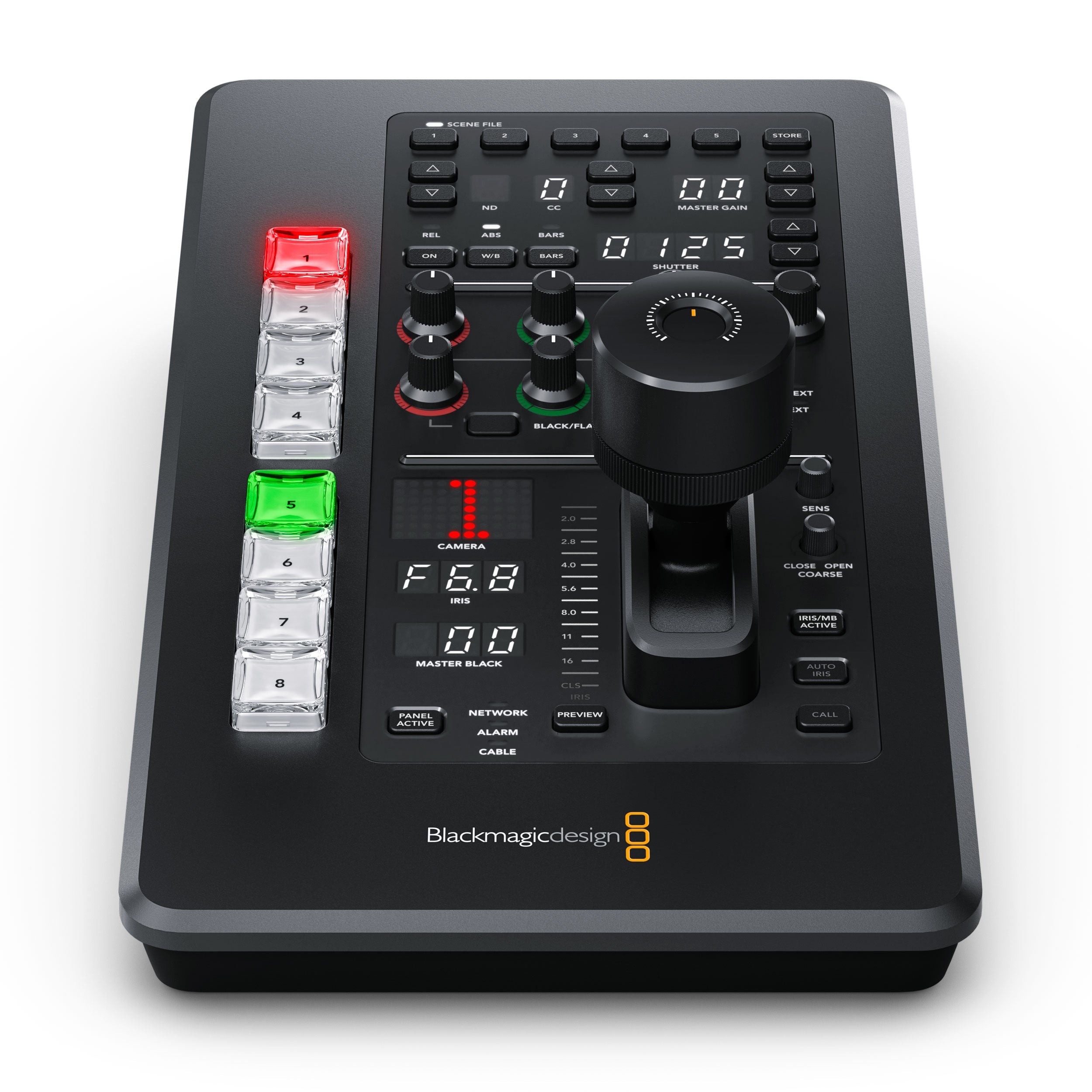

Blackmagic Design ATEM Micro Camera Panel

The ATEM Micro Camera Panel is a compact control panel designed for professional live production workflows. It gives you full broadcast-style control over your camera settings in a lightweight and portable form.

Connect the Micro Camera Panel to your computer using USB‑C or pair it via Bluetooth 5.1 LE with ATEM Software Control. From a single panel, you can manage up to 8 cameras with full CCU (Camera Control Unit) functionality. Adjust the iris, pedestal, shutter speed, white balance, RGB balance, gain, and more with precision and ease.

The ATEM Micro Camera Panel gives technical directors and camera operators reliable, responsive control over live broadcast cameras without adding complexity.

Blackmagic ATEM Micro Camera Panel Key Features:

• Camera Control: Manage 8 cameras using dedicated NKK buttons. Green shows off-air; red indicates on-air.
• 3-Axis Joystick: Provides tactile control for fine-tuning camera parameters.
• Iris Control: Auto iris and coarse manual adjustments; supports CLS f32 to f1.2.
• Gain Adjustment: Range from -12dB to +32dB.
• Shutter Speed: Adjustable from 1/24 to 1/2000.
• White Balance: Range from 2500K to 10,000K.
• ND Filters: Four levels – 0, 2, 4, and 6.
• Recallable Scenes: Store and recall up to 5 scenes per camera.
• Panel Lock: Protects live settings from unintentional changes.

ATEM Micro Camera Panel Connectivity:

• USB‑C: For connection and firmware updates.
• Bluetooth 5.1 LE: Enables wireless control with ATEM Software Control.
