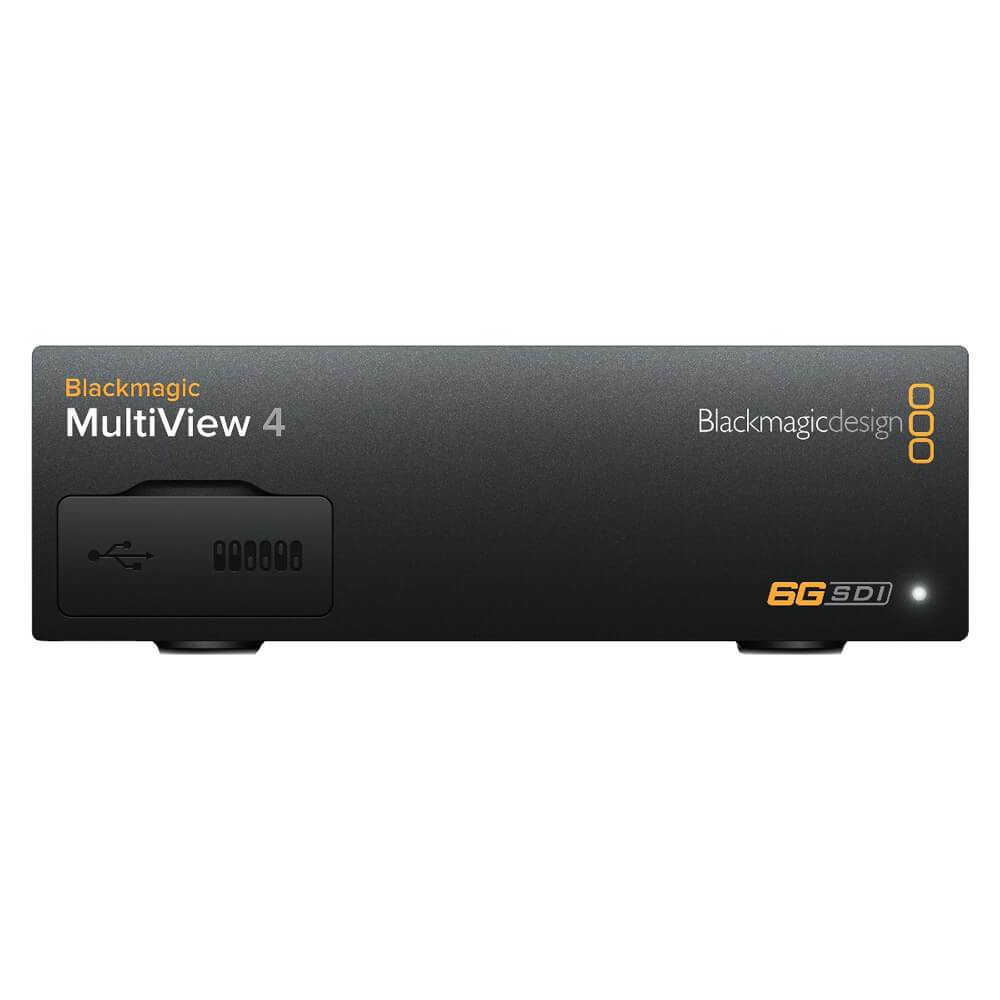

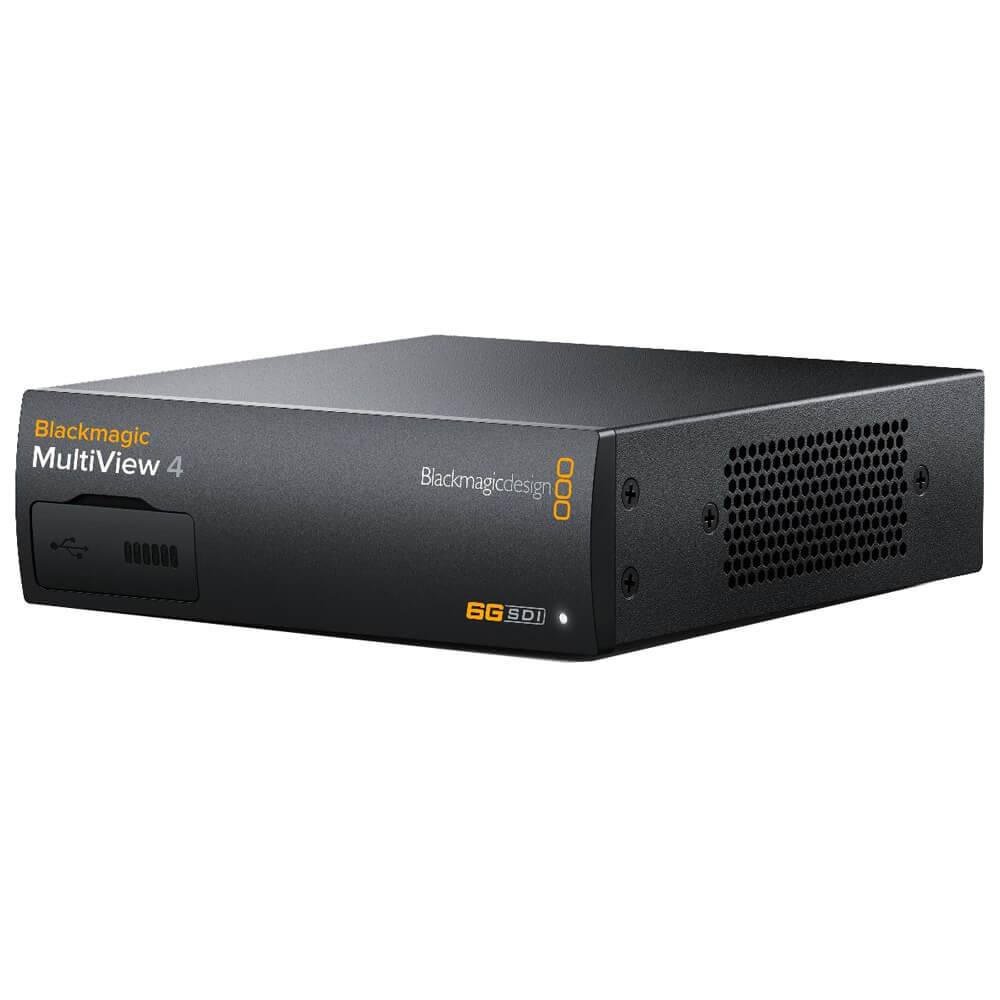

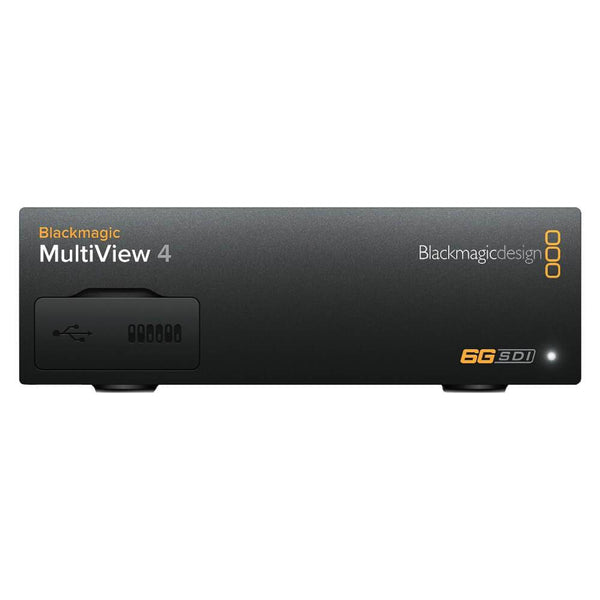

Blackmagic Design MultiView 4

The Blackmagic Design MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display. The MultiView features 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD, and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels, and more in each view.

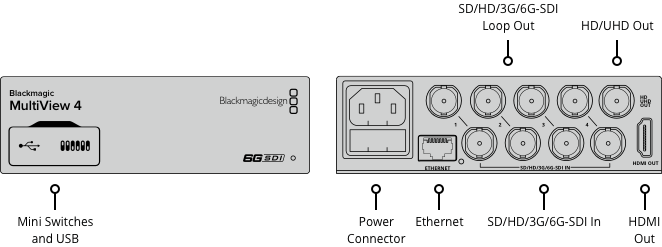

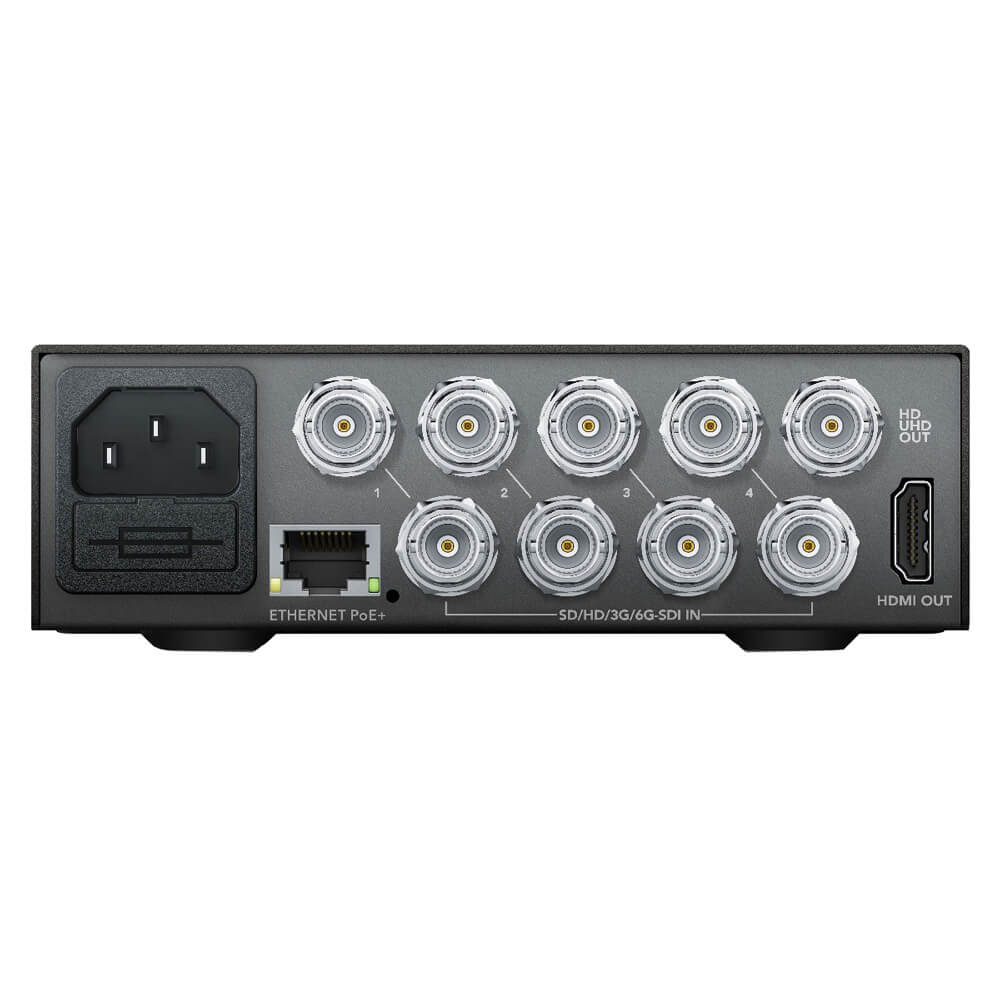

TheMultiview 4 gives a 2 x 2 display with each input fully re-synchronized. In details for the connectivity, there is one 6G-SDI output and one HDMI multi-view output as well as the loop output to provide each 6G-SDI input in passing the signals to additional devices. The Ethernet port allows you to control this device distantly with the included software by the optional Teranex front panel (not included). For easy integration, this device has a built-in multi-voltage power supply that supports 90 to 240 VAC, and alternatively by 48 VDC PoE+.

MultiView 4 Features:

• 4x 6G-SDI Inputs with Loop Outputs
• 1x SDI & 1x HDMI MultiView Outputs
• Supports SD, HD, UHD 4K, DCI 4K
• Independent Inputs Allow Mixing Formats
• Standard Quad-Split View
• Ethernet for Remote Control
• Built-In 90V - 240V AC International Power Supply
• Accepts Ethernet (PoE+)
