Blackmagic Design Mini Converter Analog to SDI

Name: Blackmagic Design Mini Converter Analog to SDI
Brand: Blackmagic Design
SKU: BMD-CONVMAAS2
Price: 225.00 USD
Availability: InStock

SKU: BMD-CONVMAAS2

MFR: CONVMAAS2

In Stock

Regular price $225.00

Add to Wishlist

Quantity

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description
Specifications
Reviews
What's included

Description

Blackmagic Design Mini Converter Analog to SDI Insights

The Blackmagic Design Mini Converter Analog to SDI is an ideal solution for converting analog component, s-video, NTSC/PAL composite to SDI video. Audio can be embedded from balanced analog or AES/EBU inputs. Now you can convert analog devices such as Betacam SP, VHS, set-top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

Product Specifications
Video Inputs	Analog Video Inputs: NTSC, PAL, S‑Video and Component SD/HD input.
Audio Inputs	Analog Audio Inputs: 2 channels of balanced analog audio. Digital Audio Inputs: 2 channels of balanced AES/EBU audio.
Video Outputs	SDI Video Outputs: 2 x SDI Video Outputs.
Audio Outputs	SDI Embedded Audio
Video Standards	SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601. SDI Video Sampling: 4:2:2 SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision: 4:2:2 SDI Color Space: YUV SDI Auto Switching: Automatically follows format of analog input. Analog Color Space: YUV Analog Color Precision: 4:2:2
Product Specific	Multi Rate Support: Auto detection of SD or HD. Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s) Reclocking: Yes
Operating Systems	Mac OS and Windows
Power Specifications
Power I/O	Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption: 6.50 Watts Operational Voltage Range: 12 ‑ 31V DC

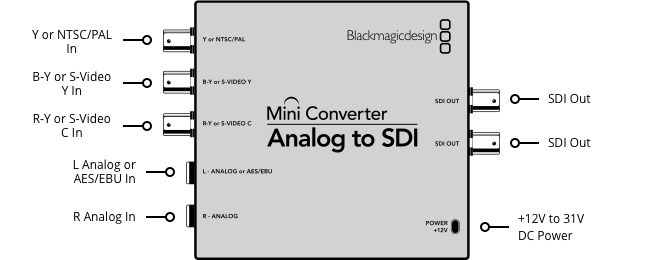

Connection Diagram
Physical / Environmental Specifications
Environment	Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Warranty	3 Year Limited Manufacturer's Warranty.
UPC / GTIN	9338716001341
