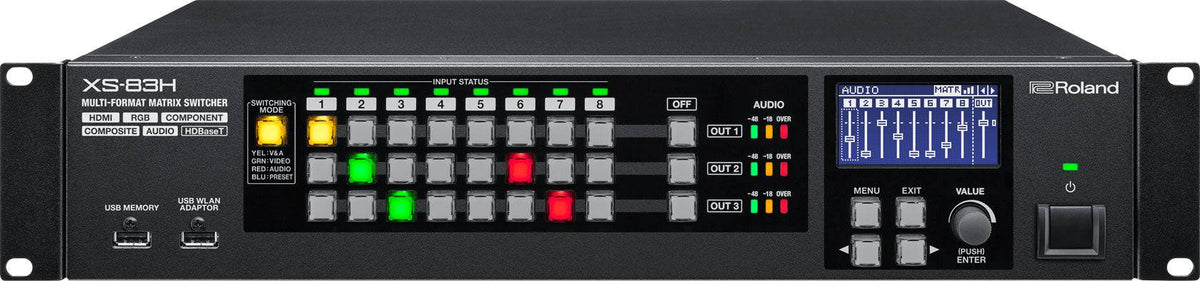

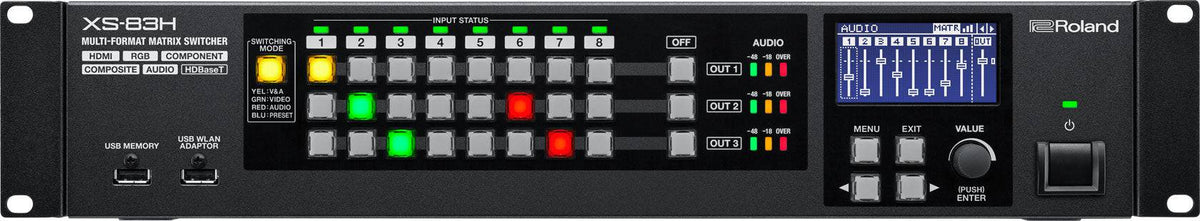

Roland XS-83H 8x3 Multi-Format AV Matrix Switcher

The Roland XS-83H 8x3 Multi-Format AV Matrix Switcher is designed for fixed installations requiring high-quality integrated video and audio conversion and switching. The XS-83H series is true adaptable, supporting eight HDMI, RGB/Component/S-video/Composite inputs and up to 3 HDMI or HDBaseT outputs with scalers to support picture-in-picture, resizing, rotating, and flipping. Audio can be embedded into outputs via 8 stereo audio inputs (2 mics) and/or HDMI audio as well as de-embedded HDMI audio on output. Additional features include iPad control, EDID emulation, and HDCP management.

The XS Series is available in three configurations: 8-in x 4-out (XS-84H), 8-in x 3-out (XS-83H), and 8-in x 2-out (XS-82H) and is ideal for many applications that include conference rooms, education, 4K switching to 1080p, performing art centers, churches, convention centers and teleconferencing.

Features:

• Support for RS-232C, network, and iPad control
• Seamless switching
• Built-in PGM/PST mode for confident switching
• Enhanced control of settings of PinP windows in multi-mode
• Expanded lock-out functions
• 8x HDMI Inputs
• 8x RGB/Component/S-Video/Composite DB15
• Built-In Scalers
• 8 Stereo Line Inputs (2 Mic Compatible)
• Built-In AD/DA Conversion
• 16 Channel Digital Audio Mixer
• S-232C, Network, iPad Control Support
• Resolutions up to WUXGA and 1080p
• 3 x HDMI and 3 x HDBaseT Outputs
