Highlights
- Supports SDI video inputs up to 3Gbit/s (1080p60)
- 3G Level A and Level B support (all formats)
- Auto reclocking 270M/1.5G/3G
- Error-free optical transmission
- Reclocked SDI loop-out connection
- SC fiber connections
- Up to 6.2 miles 3Gbit/s (Singlemode)
- Up to 984 feet 3Gbit/s (multimode)
- Supports hot swapping and hot plugging
Lynx Technik yellobrik 3Gbit SDI to Fiber Optic Transmitter with Fiber SC
Ships in 2-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Description
Lynx Technik yellobrik 3Gbit SDI to Fiber Optic Transmitter with Fiber SC Insights

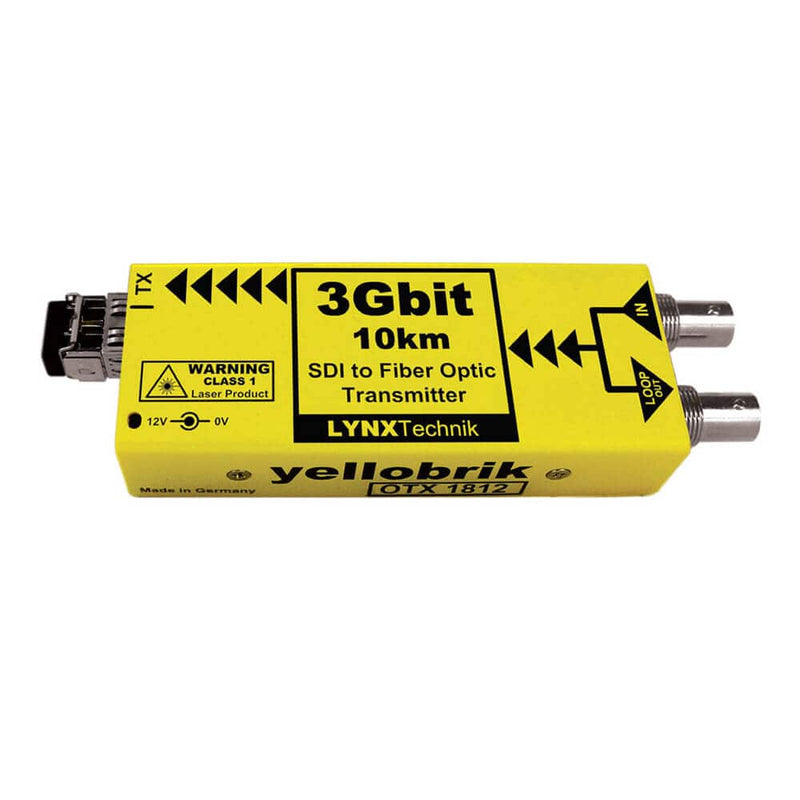

The Lynx Technik yellobrik OTX-1812-3Gbit SDI to Fiber Optic Transmitter with Fiber SC is a tiny SDI to fiber optic transmitter designed to overcome the limitations associated with the long-distance distribution of uncompressed broadcast quality video feeds. When combined with a fiber optic to SDI receiver (such as the yellobrik ORX 1802), you have a very cost-efficient optical transmission/receiver solution for signals up to 1080p60 (3Gbit/s) while retaining full uncompressed quality.
The OTX 1812 has a looping SDI input, support for LC, ST, or SC single-mode fiber connections, and an LC variant for multimode fiber. Prior to optical transmission, the OTX 1812 will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s, or 3Gbit/s SDI source. The module fully supports 3G Level A and Level B formats.
Specifications
Lynx Technik yellobrik 3Gbit SDI to Fiber Optic Transmitter with Fiber SC Specifications
Reviews
What's included
Included on Lynx Technik yellobrik 3Gbit SDI to Fiber Optic Transmitter with Fiber SC
Recommended Products
| Physical / Environmental Specifications | |
|---|---|
Dimension |
|
