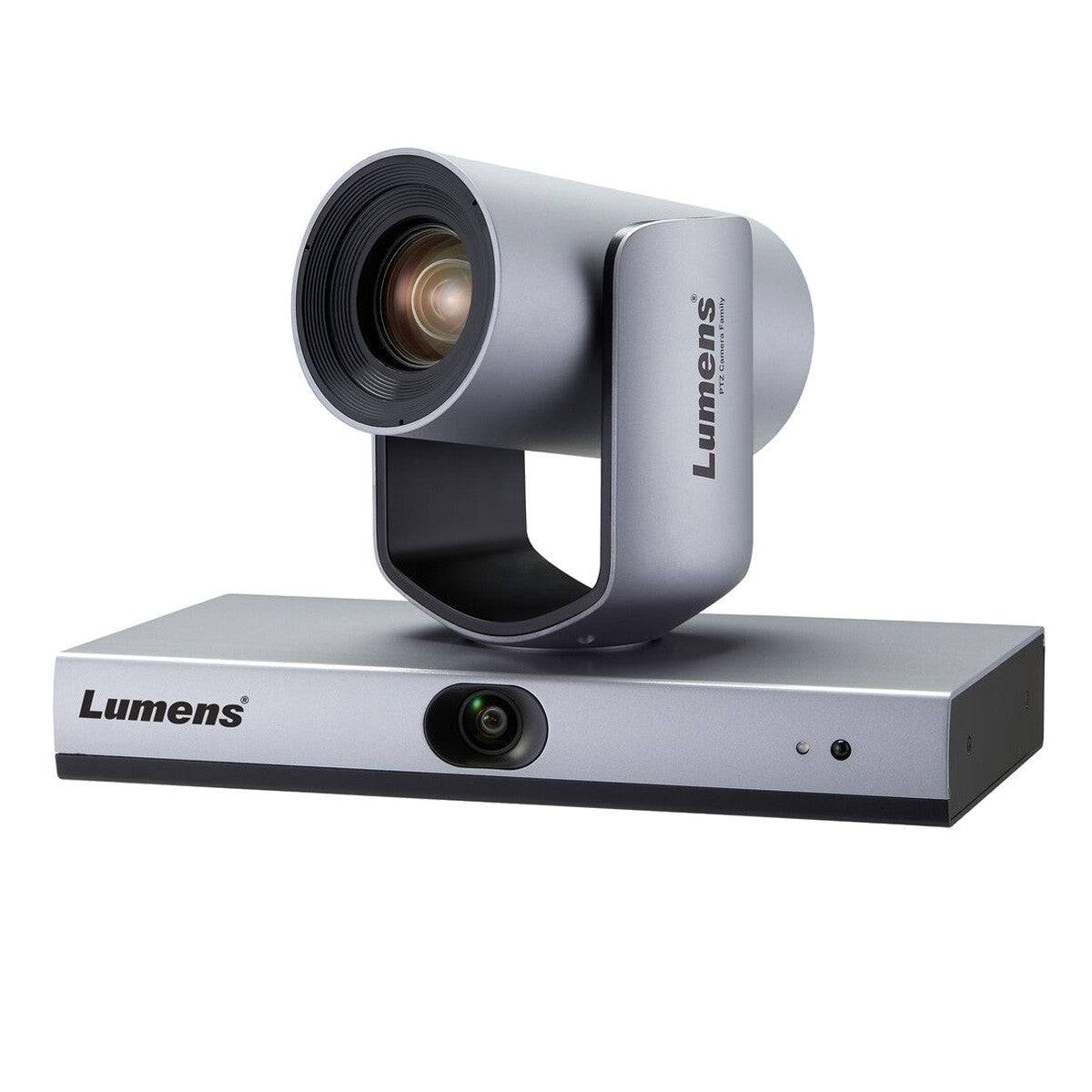

Lumens VC-TR1 Full HD Auto Tracking PTZ Camera

The Lumens VC-TR1 Full HD Auto Tracking PTZ Camera is capable of tracking a target automatically and continuously. The VC-TR1 is equipped with dual cameras and a secondary panoramic camera which guarantees consistent tracking performance. The smart switching function allows the VC-TR1 to automatically switch the view between two cameras during tracking whether the tracked target is moving or has stopped moving. These innovative functions can help build your video production automation.

The VC-TR1 comes with a professional FHD image sensor and 20x optical zoom providing a vivid Full HD 1080p output resolution. It supports PoE and IP streaming simplifying an A/V integration. It is applicable for lecture capture, corporate training, house of worship, and any stage setting environments.

VC-TR1 Features:

• Auto tracking and smart switching
• Full HD 1080p 60fps with 20x optical zoom

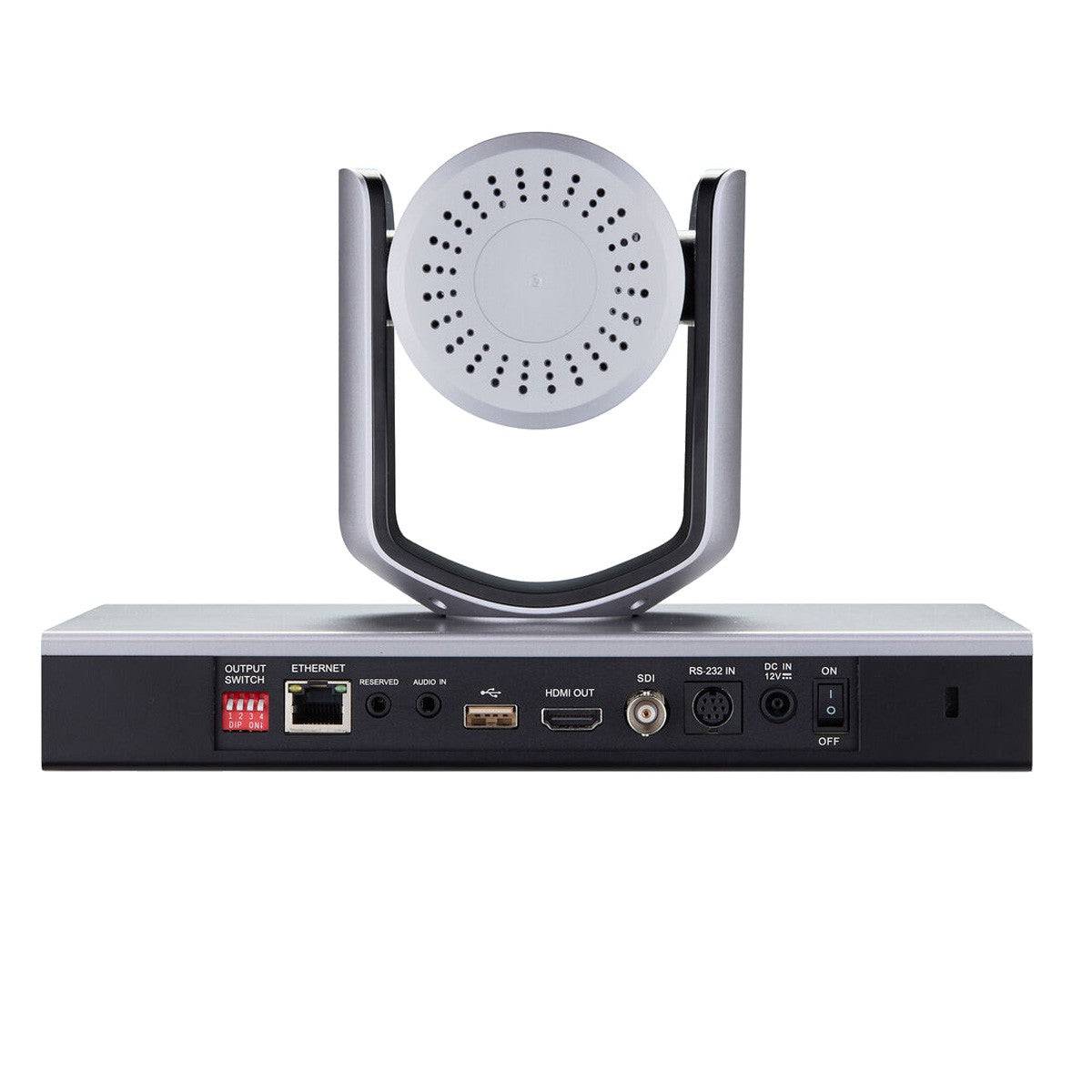

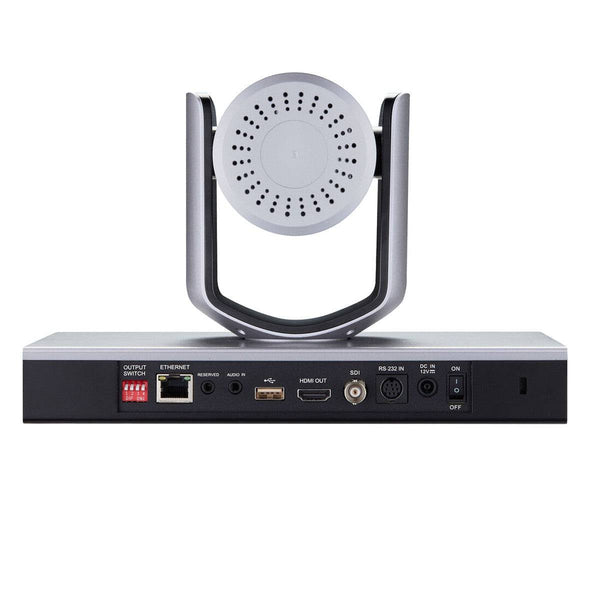

• HDMI, 3G-SDI, IP, and USB video outputs
• Supports PoE+ (Power over Ethernet)
• Compatible with Barco ClickShare Conference
• Supports RTSP / RTMP / RTMPS and HEVC / H.264 / MJPEG video compression

Stage Tracking
Focuses on a presenter standing on a stage or behind a lectern and tracks the speaker's movement across the stage area.

Everywhere Tracking
With this mode, the camera will follow the speaker even if they leave the stage to interact with the audience. The system will maintain the tracking even if the speaker is obscured by other people.

Smart Self-Switching
The VC-TR1 combines a PTZ camera and a fixed 112° panoramic camera. With this design, it can capture an entire view and track a speaker simultaneously. The device can switch instantly between the two cameras. Audiences see not only a presenter but also the content on a whiteboard or presentation material.

20x Optical Zoom
The lens of the VC-TR1 provides an incredible 20x optical zoom. It delivers brilliantly clear video and exceptional optical accuracy at 1080p resolution.

Easy Installation Solution
The VC-TR1 supports Power over Ethernet (PoE) and IP streaming to simplify AV integration. No camera controller is required.
