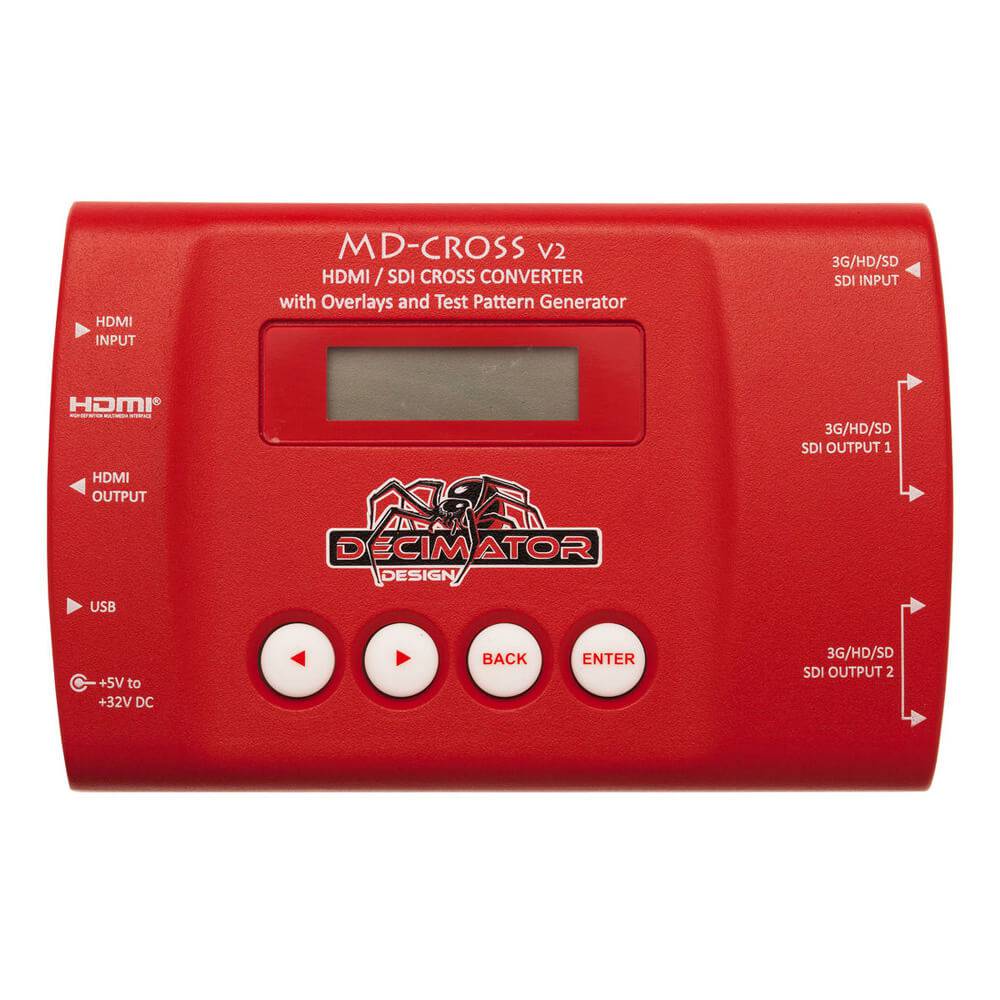

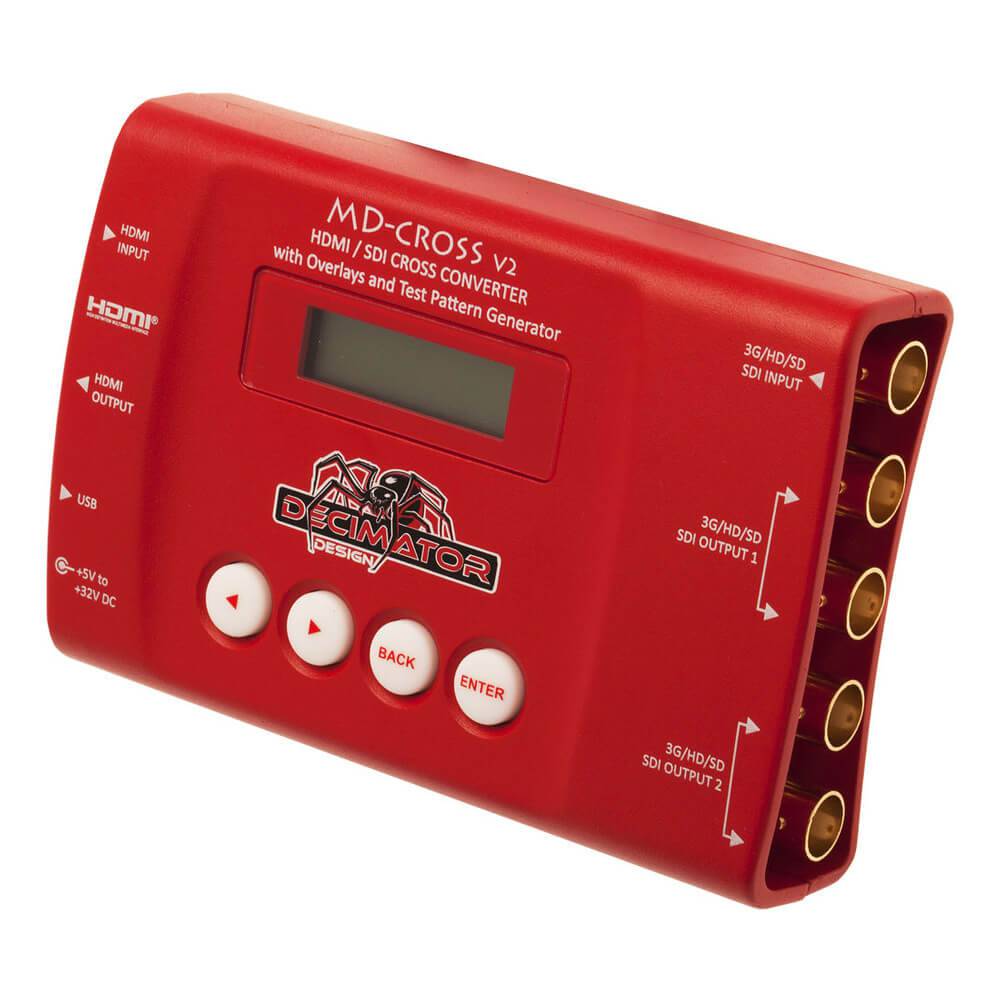

Decimator MD-CROSS v2 HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion

Decimator MD-Cross from Decimator Design is a portable HDMI and SDI Cross Converter with Frame Rate Conversion, Overlays, Scaling, Video Test Pattern and Audio Tone Generator. The MD Cross features HDMI and 3G-SDI input and convert the output into your desired video standard. The converter can support resolutions up to 1080p60 with 26 selectable output formats. Four of SDI outputs can be used as a 1 to 4 distribution amplifier and Support 3G SDI level A and B both input and output.

Decimator MD Cross support the following 14 modes:

• SDI IN to HDMI and SDI OUT
• SDI IN to SDI OUT and HDMI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• HDMI IN to SDI OUT and SDI IN to HDMI OUT
• HDMI IN to HDMI and SDI OUT
• HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
• HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled SDI IN to HDMI and SDI OUT
• Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
• Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
• Scaled HDMI IN to HDMI and SDI OUT

Professional 3G/HD/SD Test Pattern Generator featuring:

• 26 Selectable Output Formats
• 54 Test Patterns including Luma and Chroma Zone-plates
• Audio Test Tone Generator

This unit also includes:

• Support for both 3G level A and B on the input and output
• Horizontal and/or Vertical image flipping via the scaler

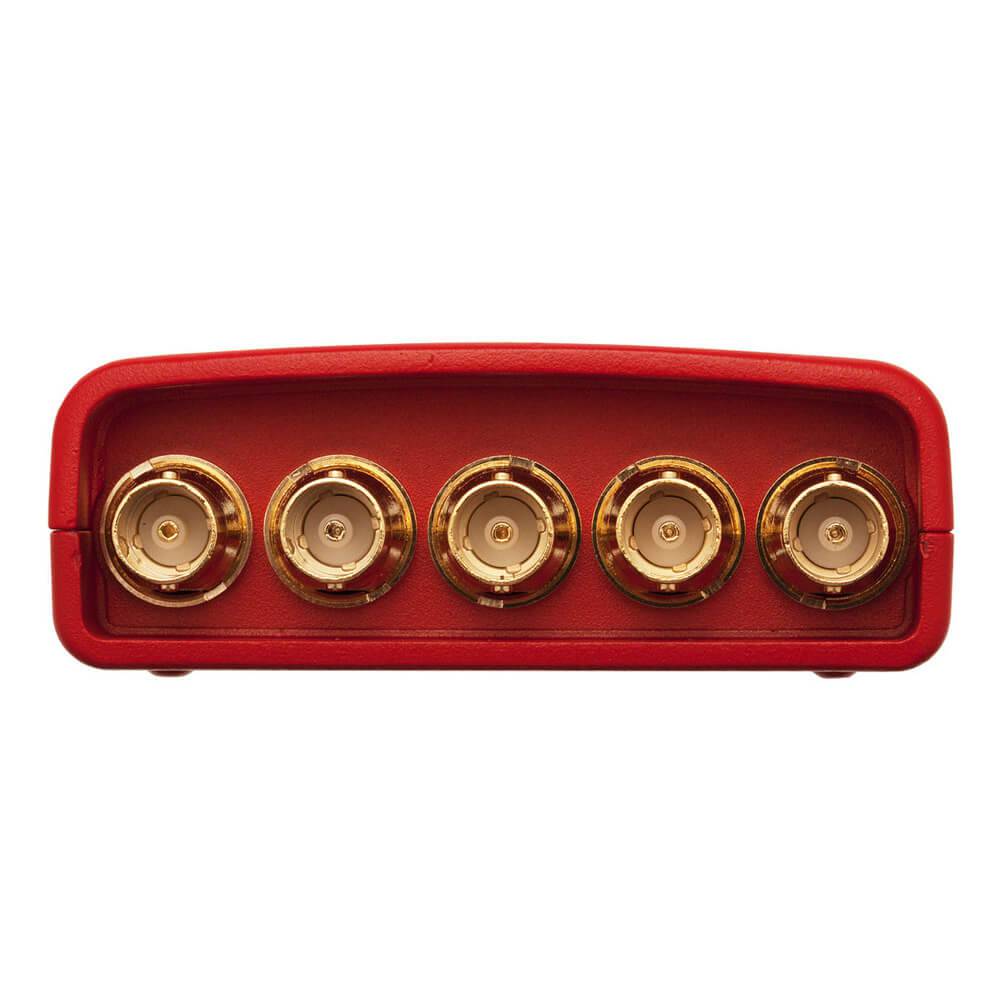

• 2 x (3G/HD/SD)‐SDI Active Loop‐Through or Additional Output
• Full 16‐Channel Audio Metering Overlays
• Adjustable Safe Title and Safe Action Overlays and static Centre Cross
• Text Overlays

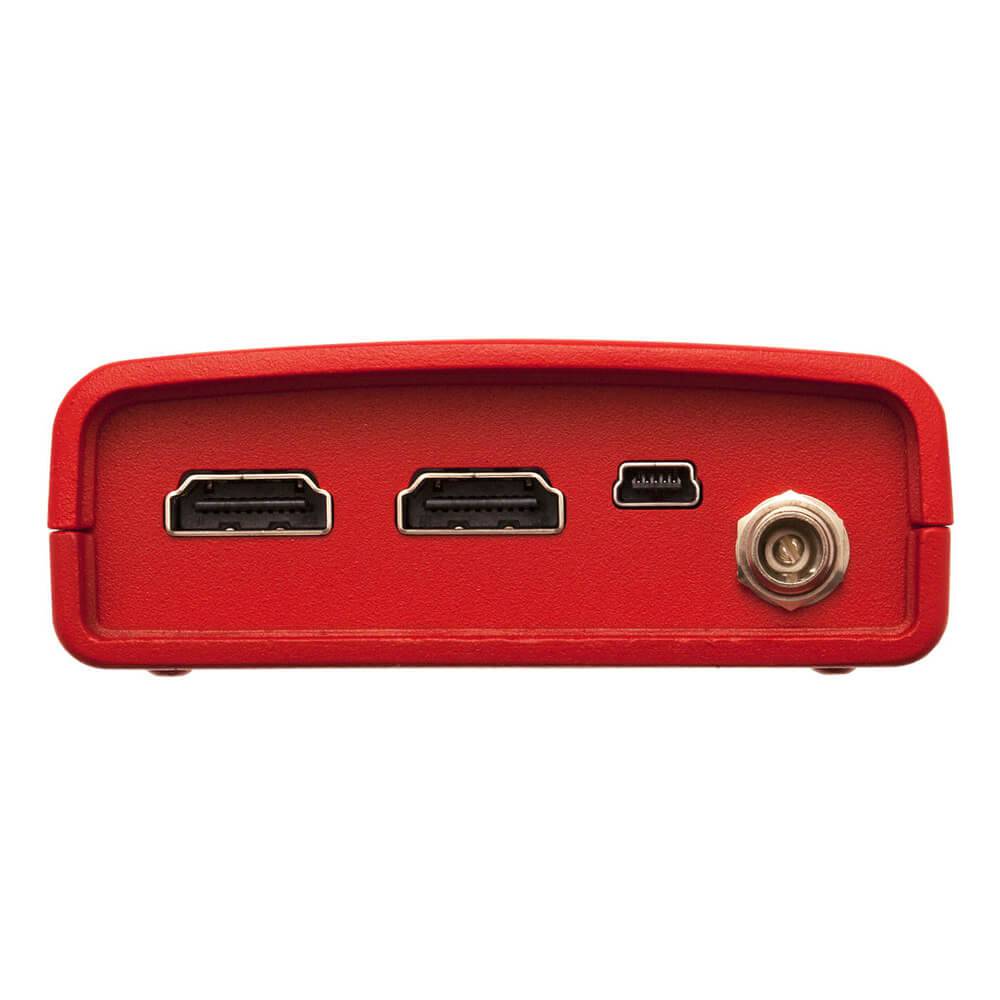

• USB port for control and firmware updates
• New Metal Thread Locking DC Power Socket
• Power Supply, HDMI Cable and USB Cable
