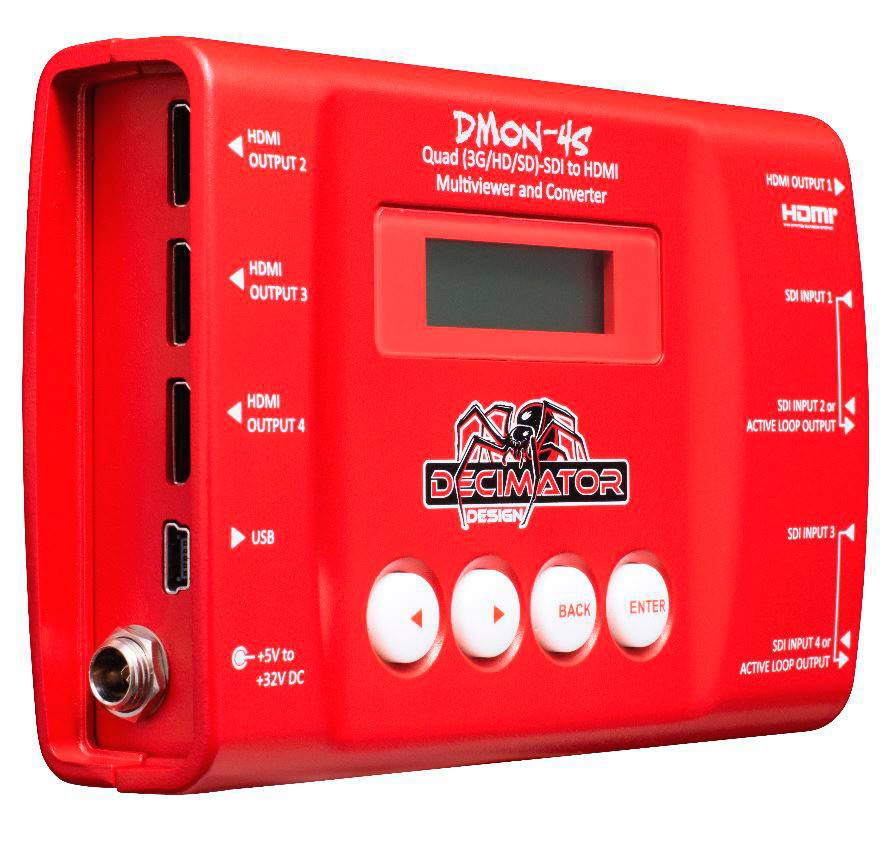

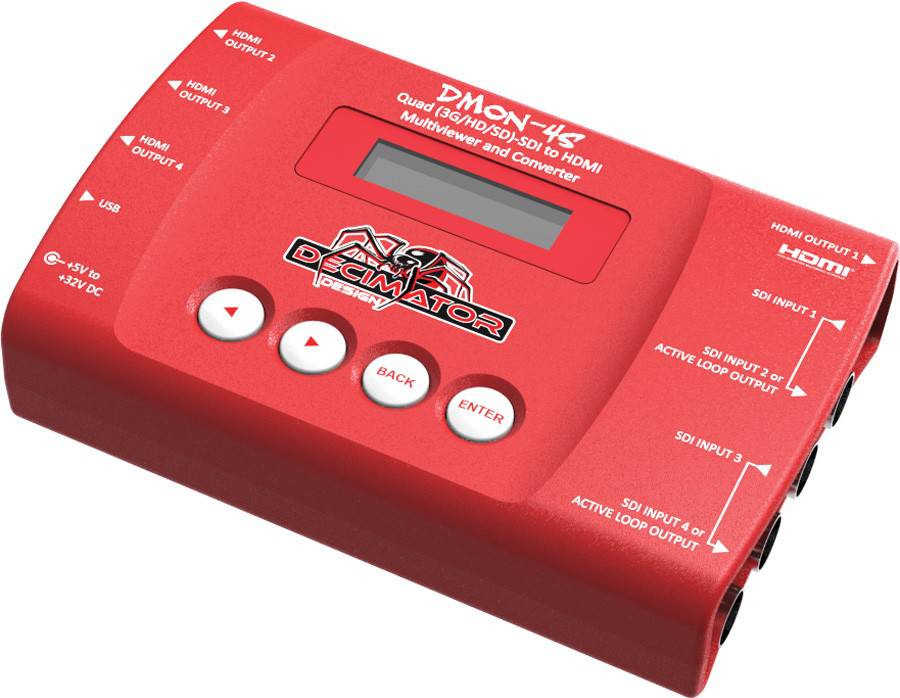

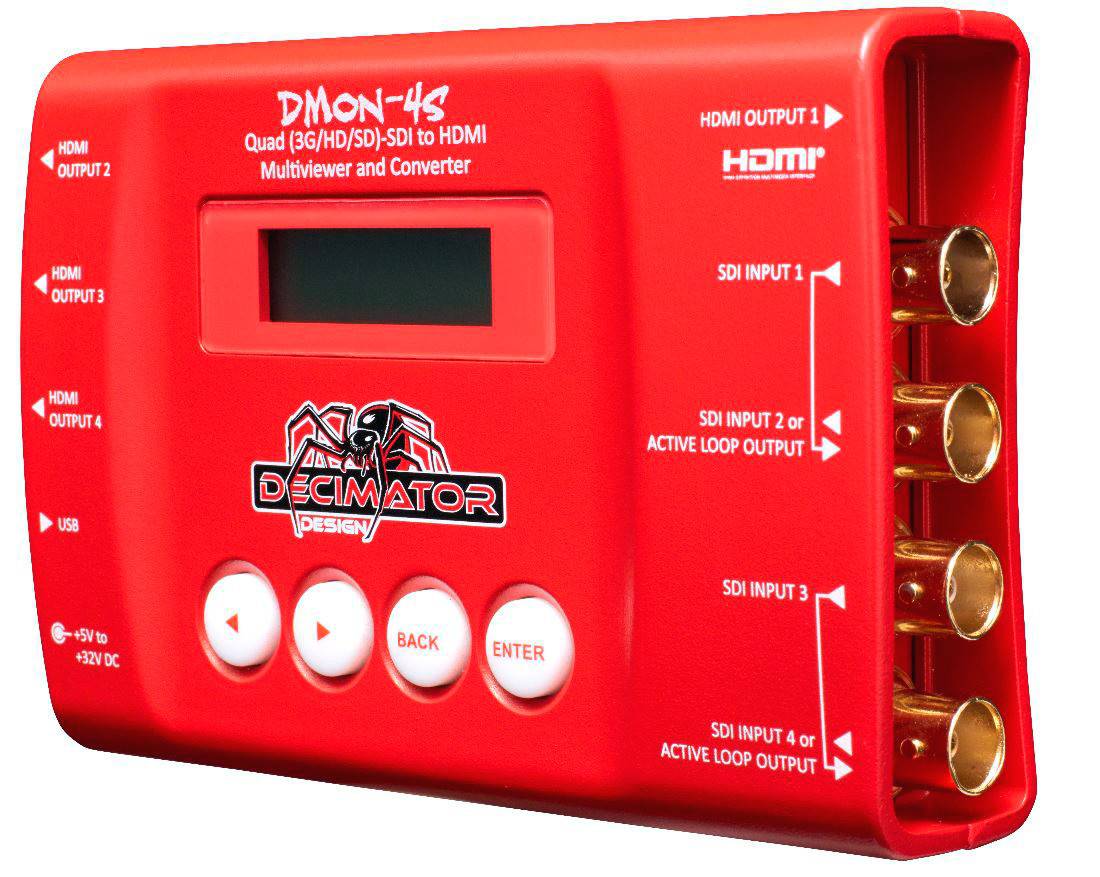

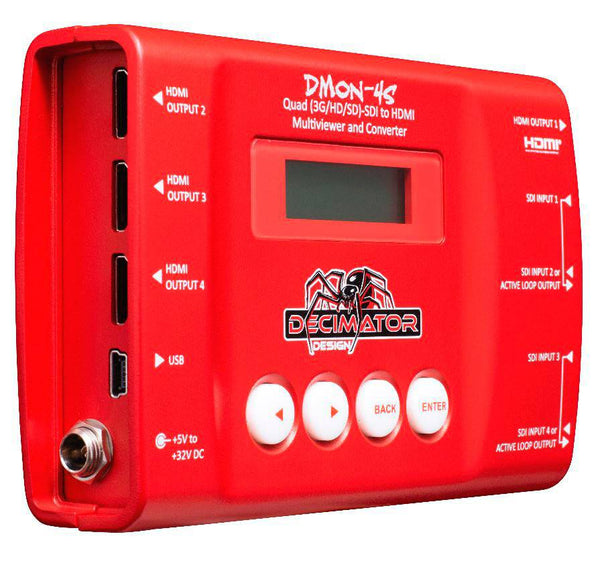

Decimator DMON-4S Quad SD/HD/3G-SDI to HDMI Converter and Multi-Viewer

The Decimator DMON-4S Quad SD/HD/3G SDI to HDMI Converter and Multi-Viewer allows user to use four independent SDI inputs and view it with four independent mini HDMI outputs or Quad-Split of all the video input. Support automatic input detection of 3G/HD/SD-SDI Level A and B, this multi-purpose converter allow input 2 and 4 to be individually change to output active loops where it copies input 1 and 2 respectively. Decimator DMON-4S has a built-in LCD screen allow you to have easy access to control its settings.

DMON 4S new features allow user to include eight channel audio metering overlay for each window, custom positioning and size.

Decimator DMON-4S Multi-View mode offers:

• Custom Layouts with various standard layouts
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selection of audio from any input
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• Low latency buffering for each input allowing non-synchronous inputs
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window

Full list of Features:

• Four independent SDI to HDMI converters
• Three independent SDI to HDMI converters with a quad-split output
• Two independent SDI to 2 x HDMI converters with loop through
• A single SDI or Quad-Splt to 4 x HDMI outputs
