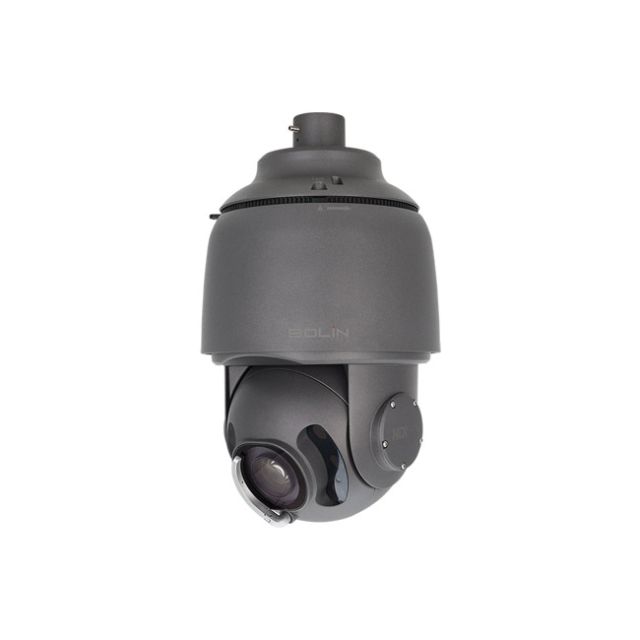

Bolin Technology SD530NX Outdoor NDI|HX3 PTZ Camera

Bolin Technology SD530NX Outdoor NDI|HX3 PTZ Camera

The SD530NX Outdoor NDI|HX3 PTZ Camera from Bolin Technology is optimized for outdoor surveillance or traffic monitoring applications while producing clear broadcast-quality, simultaneous dual-output 1080p60 3G-SDI and IP video in inclement weather conditions, and this model also features high-quality, low-latency NDI|HX3 streaming. With 30x optical zoom and 12x digital zoom, along with a myriad of image parameters, the camera can be controlled through a local or IP environment using LAN, RS-422, or RS-485 connections.

Low-latency mode, advanced autofocus, a wide dynamic range, a built-in visibility enhancer, and a built-in stabilizer also ensure high-quality broadcast in H.264, H.265, or MJPEG formats. Outdoor enhancements include a reinforced rain wiper, corrosion-resistant coating, a secure pendant mount, and a locking safety chain. Power to the device can be provided with either an AC or DC 24V power adapter or via a PoE++ connection.

Quick Features

• Updated Sony 1/2.8" CMOS STARVIS II sensor
• 30x optical zoom range, 12x digital zoom
• Up to 1080p60 resolution via IP and 3G-SDI output
• High-resolution, low-latency NDI|HX3 support
• RTSP, RTMP, SRT Supported
• Visca-over-IP, ONVIF, FreeD, Serial control supported
• FreeD control protocol enabled
• High performance in extremely low light
• Image stabilizer
• Weatherproof IP67 rated
• Reinforced rain wiper, heater
• Advanced AF performance
• Wide dynamic range (Wide-D)
• Visibility Enhancer (VE)
• Optional breakout cable available separately

Dual Output

• Simultaneous 3G-SDI baseband video and IP/NDI|HX3 streaming output for live streaming and remote management
• SDI and IP can be controlled independently in settings
• Supports RTSP and RTMP for IP online video and live streaming

Electronic Image Stabilizer

• Built-in image stabilizer ensures clear image by eliminating blur caused by low-frequency vibration
• Makes camera optimal for outdoor surveillance and traffic monitoring applications when mounted on bridge or pole where it's subjected to high winds or mechanical vibration

Rugged Design

• Metal casing with IP67 waterproof rating
• Corrosion-resistant housing for salt-spray environment use
• Built-in heater-blower for minimizing condensation under severe weather changes
• -40 to 140°F operating temperature
• Double-sided, special-coated window with rain wiper to ensure clear image

Control Methods

• Serial RS-422, RS-485, and IP control compatibility for both local and IP environment control
• VISCA and PELCO protocols over RS-422 or RS-485 connection
• VISCA over IP and ONVIF IP protocols over IP LAN connection

What's In The Box

• Bolin Technology SD530NX Outdoor NDI|HX3 PTZ Camera
• Power Adapter
• Power Connector
• Safety Chain
