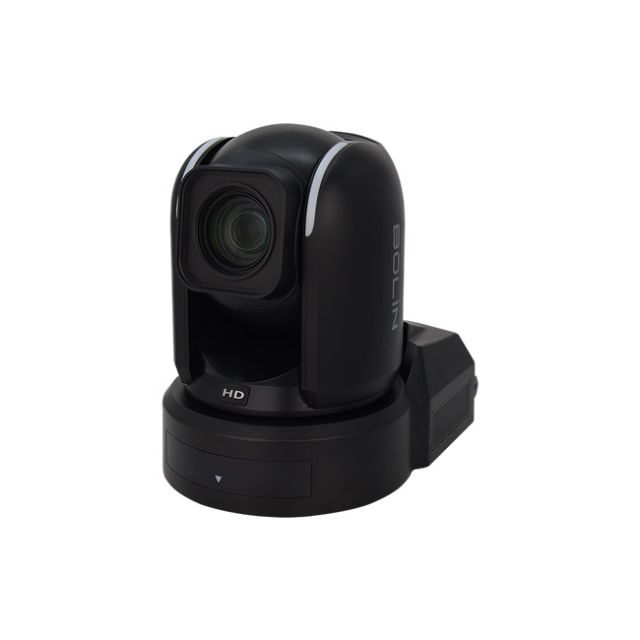

Bolin Technology R9-230H Indoor Full HD PTZ Camera (Black)

Bolin Technology R9-230H Indoor Full HD PTZ Camera (Black)

Bring HD quality video to your production with the black R9-230H Indoor Full HD PTZ Camera from Bolin. This versatile PTZ camera outputs up to 1080p60 via 3G-SDI, HDMI, and IP streaming, and this model also features high-quality, low-latency NDI|HX3 streaming. It features a large 1/1.8" CMOS sensor with 4.17MP image capture, a 30x optical zoom, an additional 12x digital zoom, image stabilization, and a wide 58.1° angle of view.

The camera can output three simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to 1080p60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the 10-pin LEMO-Type audio port. The camera can be powered using PoE++ or via an optional power adapter.

Â

Features

• Designed for indoor use
• Large 1/1.8" CMOS sensor, 4.17MP
• HDMI, 3G-SDI, and IP output up to 1080p60
• 30x optical, 12x digital zoom
• LEMO-type 10-pin balanced XLR (with separate breakout cable) audio input/output, with embedding
• Maximum 100°/s pan/tilt in high-speed mode
• Live streaming via RTMP, RTSP, RTP, MP2TS over UDP, TS over RTP/SRT, WebRTC
• On-screen character generator
• PoE++ and 24 VDC power supply options

Â

What’s In The BoxÂ

• Bolin Technology R9-230H Indoor Full HD PTZ Camera (Black)
• Power Adapter
• Power Cable
• IR Remote Control
• RJ45 to RS-422 Extension Cable
• Mounting Screw Set
• Dust Cover
• Safety Cable
• Lens Cap
