Blackmagic Design URSA Mini Pro SSD Recorder

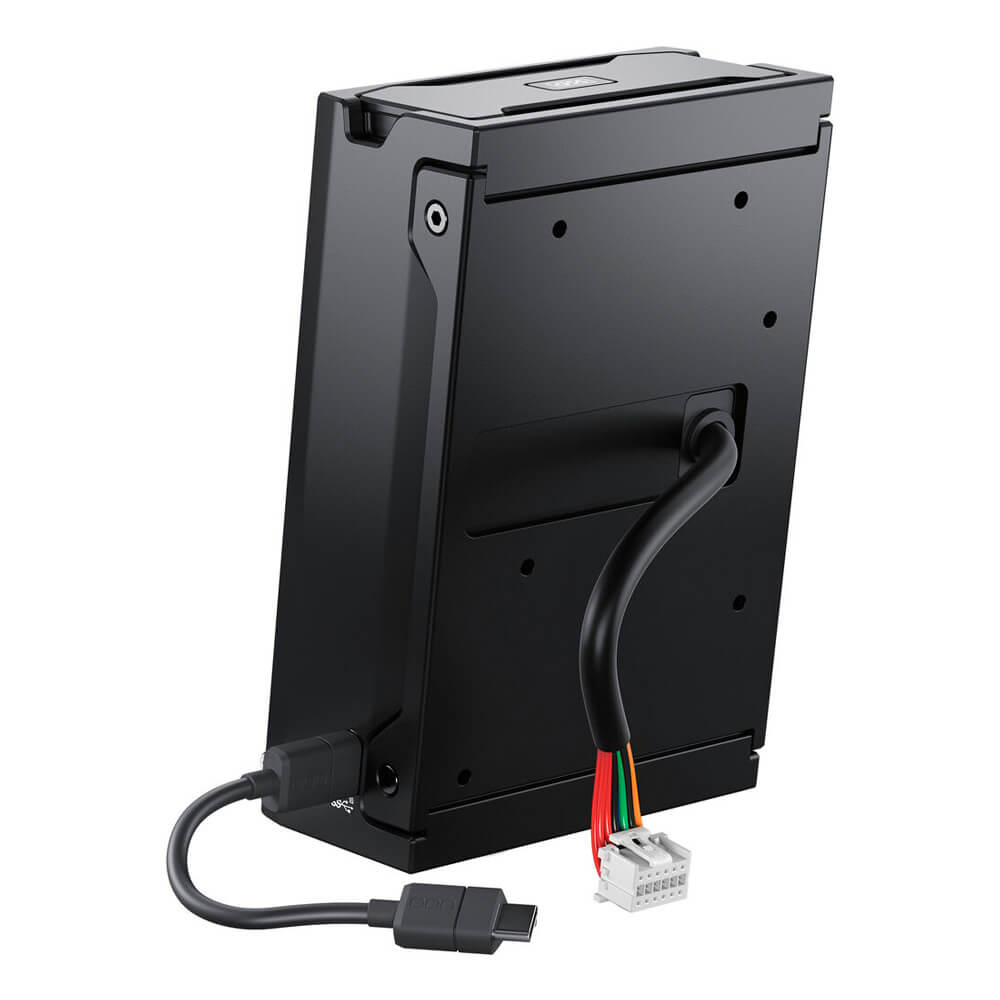

The Blackmagic URSA Mini SSD Recorder is an optional module which attaches to the rear of URSA Mini Pro 4.6K directly behind the camera body, using your camera's rear SDI in and out BNCs to pass data to and from URSA Mini SSD recorder. The SSD recorder allows you to record footage including 4.6K RAW files to high capacity and inexpensive solid state drives SSDs. You can also attach a V-Mount or Gold-Mount battery plate behind the recorder with a passthrough cable for your camera's battery power supply.

The SSD Recorder can use commonly available and inexpensive high capacity solid state media. Unlike other types of cards, SSD media is super fast so you can record full resolution 4K and 4.6K 12-bit RAW files. Support SSDs up to 4TB, so you can record longer without having to change cards. The unique design of the SSD Recorder attaches directly to the back your URSA Mini Pro between the camera and the battery. It uses 6G-SDI as a data link to the camera so you don’t have to worry about starting or stopping the SSD recorder. Everything is setup and controlled directly from the camera.

Note: The recorder uses SDI inputs and outputs, therefore you cannot simultaneously connect your camera SDI to an ATEM switcher. URSA Mini Pro 4.6K must be running software version 4.5 or higher. Visit www.blackmagicdesign.com for software update.

The following SSDs are recommended for 4.6K Lossless RAW up to 30p.

The following SSD’s are recommended for 4.6K ProRes 444XQ up to 30p.

The following SSD’s are recommended for 2160p ProRes 422 HQ up to 60 fps.
