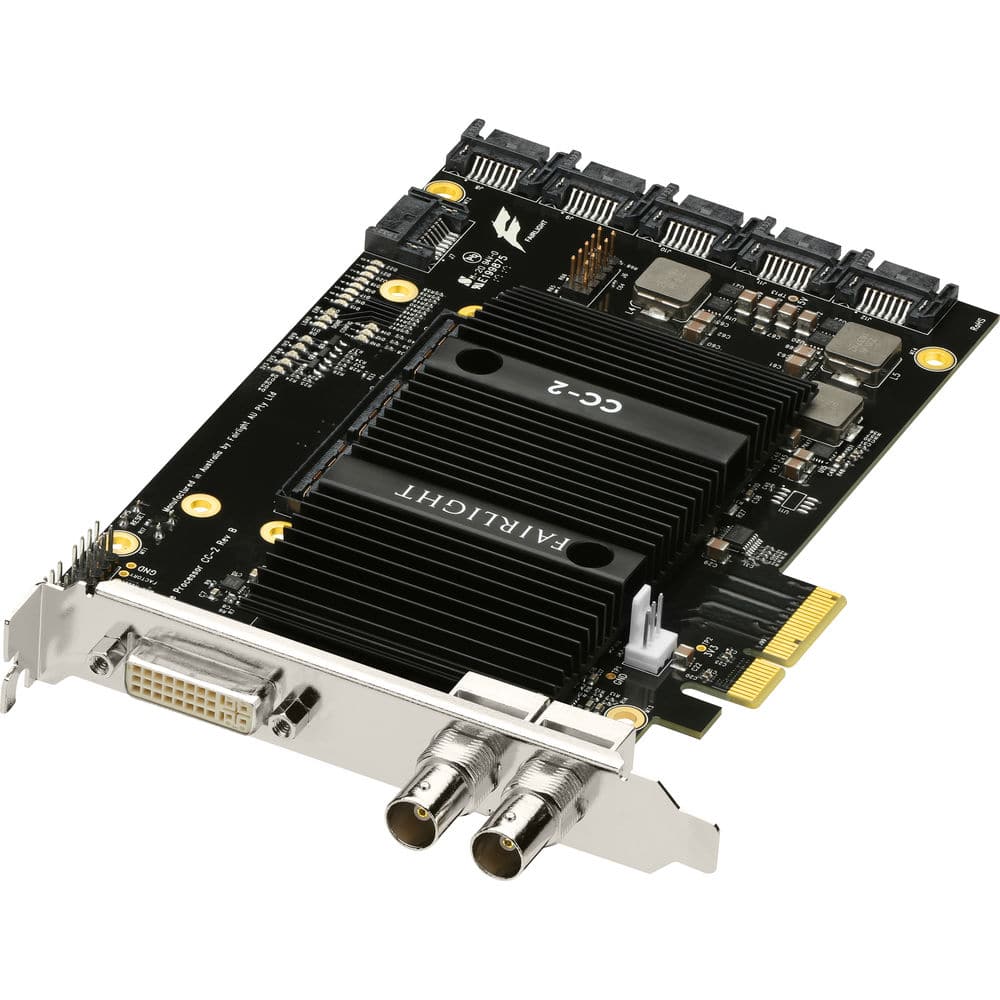

Blackmagic Design Fairlight PCIE Audio Accelerator

Description
Specifications
Reviews
What's included

Description

Blackmagic Design Fairlight PCIE Audio Accelerator Insights

For the most flawlessly audio performance execution, add a Blackmagic Design Fairlight PCIE Audio Accelerator to your workflow. You'll get blasting performance with astonishing sub-millisecond latency on every one of the 1,000 tracks alongside full real-time processing of EQ, expander/gate, compressor, and limiter elements, and up to 6 ongoing VST plug-ins modules for each channel.

Product Specifications
Audio Inputs	MADI Inputs: 1 x MADI input via 75 ohm BNC
Audio Outputs	MADI Outputs: 1 x MADI output via 75 ohm BNC
Product Specific	MADI Expansion Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3. I/O Expansion Supports Fairlight Audio Interface via multi‑pin connector on shield. Sampling 44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing. Channel Structure Verified using Mac Pro 7,1 with Intel CPU. Core Audio Track count organized from mono to 26.0. 2000 Mono Audio Tracks at 48kHz. 1000 Mono Audio Tracks at 96kHz. 500 Mono Audio Tracks at 192kHz. Total Busses 256 Busses plus 512 Bus elements at 48kHz. 256 Busses plus 256 Bus elements at 96kHz. 256 Busses plus 128 Bus elements at 192kHz. Record Channels 128 at 48kHz. 64 at 96kHz. 32 at 192kHz. Additional Record Channels When used with Core Audio plus Fairlight Accelerator. 256 at 48kHz. 128 at 96kHz. 64 at 192kHz. Channel Facilities Elastic wave time warping and sample rate conversion. Six band EQ. Expander/gate, compressor and limiter. Up to six Resolve, VST or AU plugins. Direct out. Four band clip based EQ. Up to six Resolve, VST or AU clip based plugins. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats. In place solo. Up to 16 VCA groups. FlexBus Structure Up to 512 mono bus elements, organized in any format from mono to 26.0. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats. Up to 10 bus sends per channel and bus with independent level control. Up to 10 post fader bus sends per channel and bus. Automatic and flexible delay compensation. Bus Facilities Four-band EQ. Compressor and limiter. Up to six Resolve, VST or AU pre fader plugins. Direct out. Plug-ins Up to six Resolve, VST or AU plug-ins on any channel or bus. Tactile control of plug-ins from the Fairlight audio editor. Plug-ins are fully controllable with automation. Monitoring Up to four simultaneous sources. Source from internal buses or external inputs. Up to 16 different speaker sets. Customizable fold up and fold down when crossing formats. Optional B-Chain processor for cinematic setups with up to 64 speakers.
Operating Systems	Mac OS and Windows
System Requirements	PCI Form Factor Single half length PCIe x4 board
Power Specifications
Power I/O	Power Usage: 14W
Connection Diagram
Physical / Environmental Specifications
Dimension	PCIe Card Length: 7.4" / 18.7 cm Weight: 7.7 oz / 216.9 g
Environment	Operating Temperature: 0° to 40°C (32° to 104°F) Storage Temperature: -20° to 60°C (-4° to 140°F) Relative Humidity: 0% to 90% non-condensing
Warranty	1 Year Limited Manufacturer’s Warranty.
UPC / GTIN	9338716004731
