Blackmagic 2110 IP UpDownCross 12G

Blackmagic 2110 IP UpDownCross 12G is a compact and powerful IP video converter. It bridges SMPTE 2110 IP, 12G-SDI, and HDMI 2.0 workflows. This unit lets you convert video and audio between SD, HD, Ultra HD, and even 4K DCI formats. It features full format conversion, a reference input for timing, and redundant power support for mission-critical setups. The front USB-C port can also act as a 1080p HD webcam, giving it more flexibility for live production or conferencing.

This Blackmagic 2110 IP UpDownCross 12G converter is ideal for broadcast, AV, and remote production environments moving to IP infrastructure. It supports a wide range of standards, including SMPTE 2110-20 video, 2110-30 audio, and 2110-40 ancillary data. You get one SDI input, two SDI outputs, a loop out, plus HDMI output. The 10G Ethernet port handles SMPTE 2110 input and output, control, and firmware updates all in one.

Key Features:

• Converts between SMPTE 2110 IP, SDI, and HDMI
• Supports SD, HD, Ultra HD, and 4K DCI formats
• Redundant power: AC and 12V DC input
• Built-in re-sync and reference input/output
• USB-C port acts as HD webcam (1080p60)

The 2110 IP UpDownCross 12G supports full 12G-SDI signal rates and HDMI 2.0 up to 2160p60. It also handles embedded audio—16 channels via SDI and IP, and 8 channels via HDMI. A built-in speaker and headphone jack make it easy to monitor audio on the go. Color precision includes support for both 4:4:4 and 4:2:2 color formats, with Rec. 601, Rec. 709, and Rec. 2020 color space support.

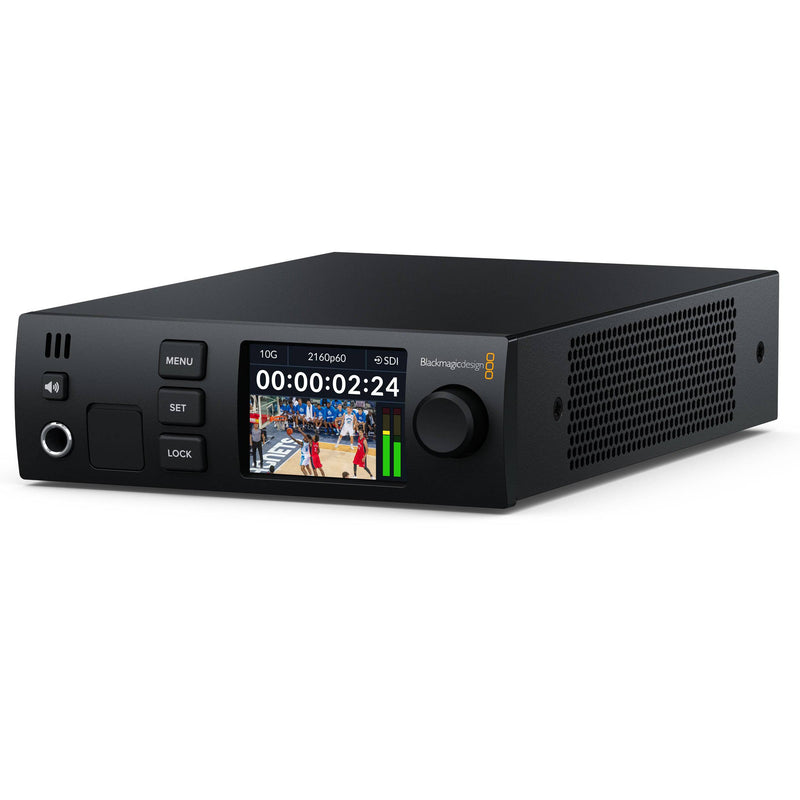

The front panel includes a 2.2-inch LCD screen, spin knob, and menu buttons for quick configuration. For external control, you can use USB-C or Ethernet. It’s fully NMOS compliant (IS-04, IS-05), enabling seamless integration into larger IP systems.

This IP video converter is perfect for professionals moving between traditional SDI and new IP standards. It runs on both Mac and Windows and includes a REST API for automation and remote control. The Blackmagic 2110 IP UpDownCross 12G offers reliable, high-quality conversion in a small, rack-friendly package—perfect for studios, OB vans, and hybrid workflows.
