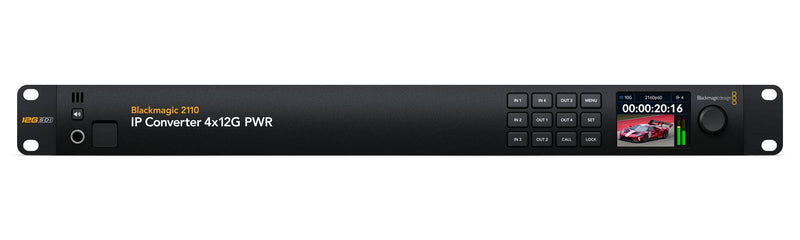

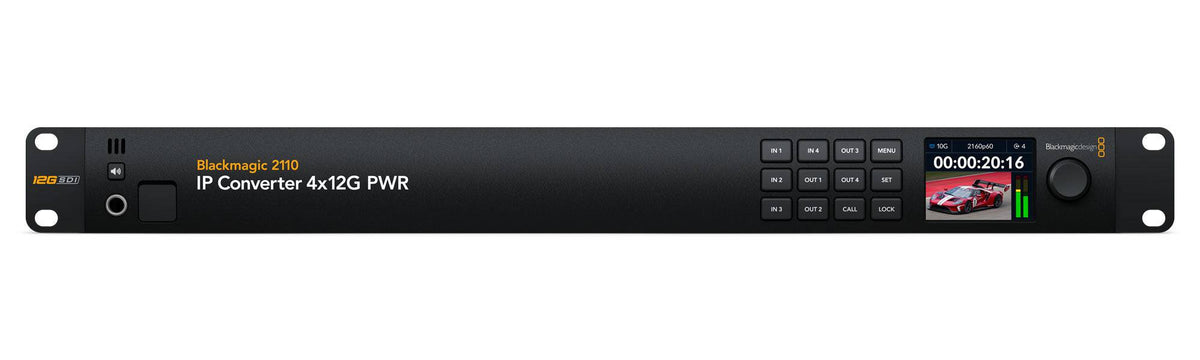

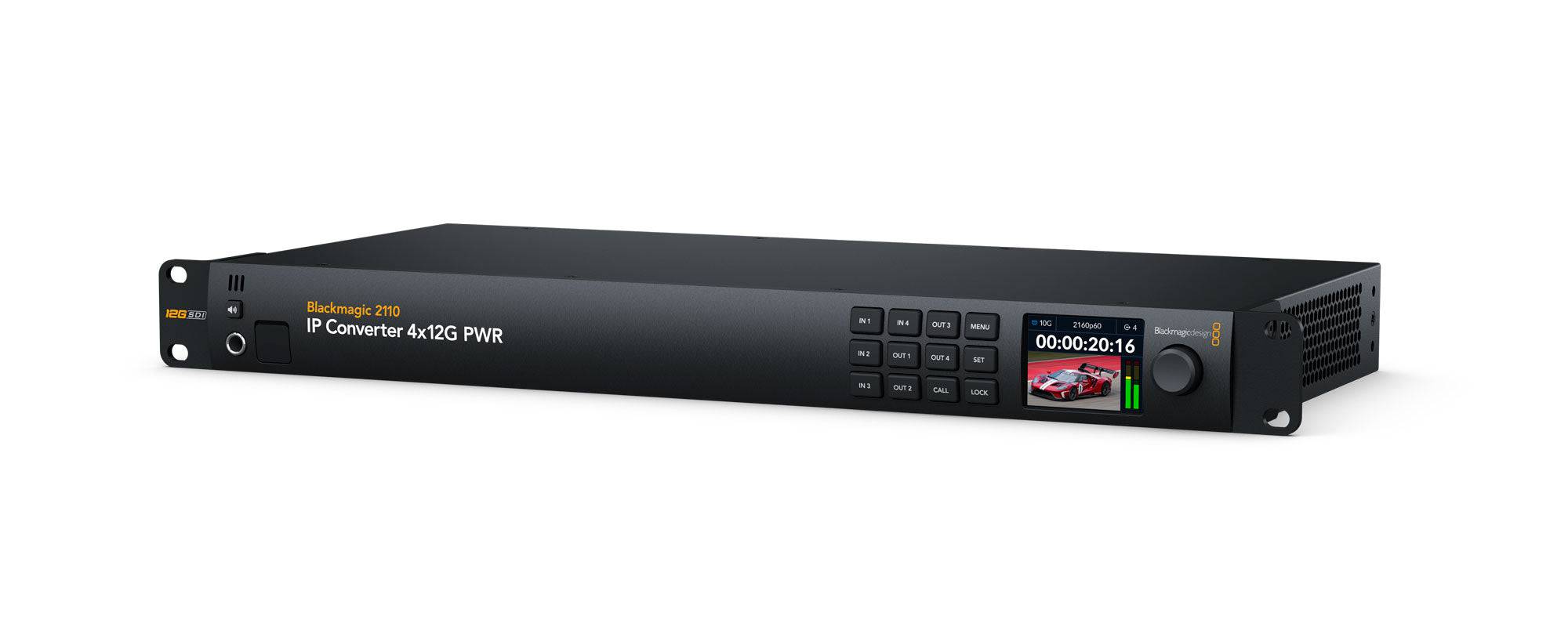

Blackmagic 2110 IP Converter 4x12G PWR

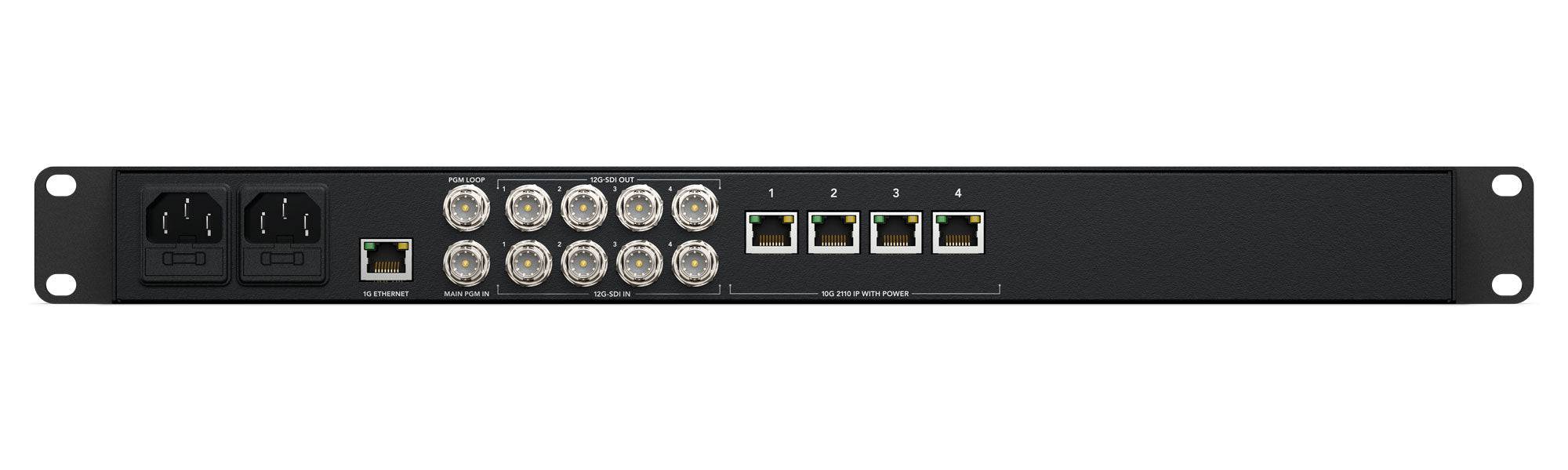

Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power. Its 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.

All Blackmagic 2110 IP Converters support the NMOS interface specifications so all 2110 IP video devices can operate together as a large virtual router. Plus Videohub Smart Control can route sources to destinations on 2110 IP networks because it can act as an NMOS controller.

By using 10G Ethernet, Blackmagic SMPTE-2110 IP video products can be smaller, lower power, and more affordable. Plus 10G Ethernet can allow products to be remotely powered. However, when using Ultra HD above 30fps, there is not enough bandwidth for uncompressed 10-bit video. The Blackmagic IP10 codec solves this problem! It has a low latency of 8 samples, is open standard, and has no license fees. Plus it's an extremely small codec that uses very few FPGA resources, so it ensures SMPTE-2110 IP video products remain affordable!

Supports SMPTE-2110 Standards

Transform your broadcasting experience with seamless transport, synchronization, and precise delivery of 10-bit video, audio, and ancillary data over managed IP networks!

Flexible Connectivity Options

Choose between affordable Cat6 copper cables or high-performance SFP sockets for optical fiber modules, and easily build SMPTE-2110 systems with minimal complexity.

Points-to-Point Connections Made Effortless

Simplify your installations and eliminate the need for complicated Ethernet switches! Experience bi-directional video and remote power using standard Ethernet cables.

Ideal for Systems of Any Size

Unleash the full potential of your design with Blackmagic's IP Converter. From compact mini converters to rack mounting models, we offer tailored solutions to fit your needs. Our intuitive LCD front panel allows for easy configuration, making it the perfect choice for any setup.

Unmatched Video Quality

Experience seamless transmission of 10-bit video work with the Blackmagic 2110 IP Converter 4x12G PWR and maintain clan color accuracy across all SD, HD, and UHD formats up to 2160p60! Transform your video workflow and bring your projects to life with stunning color and precision.

Enhanced Routing and Device Compatibility

With the Blackmagic 2110 IP Converter 4x12G PWR, you can quickly establish connections via an Ethernet switch, making it perfect for large broadcast systems. This powerful device allows for seamless collaboration and operation among all 2110 IP devices, functioning as a virtual router for effortless configuration.
